Anti Corrosion Outdoor Telecom Enclosure Weatherproof Electrical Cabinet
1. Why need Outdoor Equipment Cabinet
Outdoor Telecom cabinets are ideal for applications where your expensive and sensitive network equipment is exposed environmental factors such as dust and water. It independently equipped with a standard 19-inch power environment monitoring module, remote real-time monitoring and monitoring and monitoring intervention sits on equipment in the base station, and remote maintenance and detection capabilities can be designed to significantly reduce late-stage operational maintenance costs.This outdoor telecom cabinet is made of high-quality galvanized steel,coated with anti-corrosive and anti-ultraviolet powder, and with IP55 protection grade.
2. Selling points and Feature Of Outdoor Equipment Cabinet
- Front access to the inside equipment
- Anti corrosion powder coating
- Standard 19“ rack for installation
- IP55
- Cooling by air conditioner, heat exchanger and emergency fan
- High integration, compact structure, easy installation and migration on later stage
- Anti-theft four-point lock, excellent keyhole protection device
- Custom made power distribution unit
- All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials, which comply with GB5169.7 test A
3. Specification Of Equipment Cabinet
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: W×D×H 600×508×600mm |
| Layout | 1 compartment |
| Equipment Installation Method | 19” rack ,10U |
| Door | With 1 front door and anti-theft three point lock for outdoor cabinet (support padlock) |
| Material | Galvanized steel |
| Structure | Assembled |
| Mounting type | Floor mounting type |
| Ingress Protection | IP55 |
| Temperature Control | Cooling | Fans |
| Lighting | LED lamp | AC220V 50Hz with protective circuit breaker |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| | | Storage Temperature: -50°C ~ + 70°C |
| | | Transport Temperature: -50°C ~ +70°C |
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
4. Cabinet And Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | PC | (1) External Dimension:W×D×H 600×508×600mm (2) One compartment: 19” installation (3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) |
| 2 | Auxiliary Direct Ventilation Fans | 2 | PC | AC220V 50Hz installed on the front door. |
| 3 | LED Lamp | 1 | PC | AC220V 50Hz |
| 4 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
| 5 | Package | 1 | PC | Wooden Case |
5. Technical Parameters
Item Technical Parameter
Working temperature range: -40℃~ +60℃
Sorage temperature range: -50℃~ +70℃
Transport temperature range: -50℃~ +70℃
Relative Humidity 5%-- 100%
Air Pressure 62kpa~ 101kpa (similar to altitude 0m ~ 5000m)
Radiation Intensity 1400* (1±5%) W/m2
6. Application Of Equipment Cabinet
- Wireless/Broadband
- Telecommunications
- Base station
- Trailer-based communications
- Fiber Optics
- Military
- Flexible and Scalable
7. Equipment Cabinet Structure
(1) External Dimension:W×D×H 600×508×600mm
(2) One compartment: 19” installation
(3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
8. Cabinet Picture
9. Door and Door Lock
(1) Cabinet door options: vertical hinge door, horizontal hinge door.
(2) The door limit device can limit the door position when it is open.
(3) The door limit function is automatically activated when the door is open, and should be canceled manually when the door is closed.

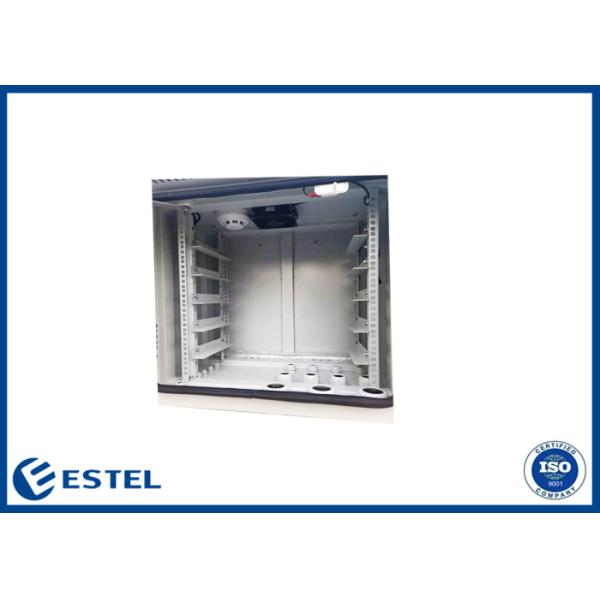

10. The Cabinet with 19” Rack
With 5 L type bracket
11. Factory Introduction
Factory Size: 3000 Square Meters
No. of Main Production Lines: 5
Contract Manufacturing: OEM Service Offered, Design Service Offered, Buyer Label Offered
Production Experience: 10 Year
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
