IP55 DDF Weatherproof Outdoor Electrical Cabinet 1500W AC220V
1. Outdoor Electrical Cabinet Description
This outdoor telecom cabinet is made of galvanized steel, only one front door access. It can provide a stable and safe working environment for telecom equipments. And it can be used for wireless communication stations under outdoor use conditions. Has the advantages of high integration, small floor area, flexible expansion, simple installation, energy saving, etc.
2. Outdoor Electrical Cabinet Features
● Full protection: door sensor, smoke sensor, water sensor, temperature & humidity sensor, etc.
● Professional outdoor anti- corrosion powder coating, strong weather resistance.
● Anti corrosion powder coating
● Cooling by air conditioner and emergency fan
● High integration, compact structure, easy installation and migration on later stage
● Anti-theft lock, excellent keyhole protection device
3. Outdoor Electrical Cabinet Specifications
(1) Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: H×W×D 2000×750×700mm |
| Layout | 1 compartment |
| Door | With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) |
| Material | 304 Stainless Steel, single wall with insulation |
| Ingress Protection | IP55 |
| Temperature Control | Cooling | Air conditioner and fans |
| Lighting | LED lamp | 48V LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C |
| Transport Temperature: -50°C ~ +70°C |
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
(2) Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set | (1)External Dimension: H×W×D 2000×750×700mm (2)One compartment: including 19” rack (3)With one front door , and anti-theft three point lock for outdoor cabinet (support padlock) (4) Material: 304 Stainless Steel, single wall with insulation |
| 2 | Air Conditioner | 1 | Set | Cooling Capacity: 2000W; Power Supply: DC48V |
| 3 | Fan | 2 | PC | DC48V |
| 4 | LED Lamp Sensor | 1 | PC | Used for controlling LED lamp on/off |
| 5 | LED Lamp | 1 | PC | DC48V,used for illumination in the cabinet |
| 6 | DDF | 1 | Set | (1)Model:MPX108-SM16 (2) Capacity: 16 system (3) Size: H×W×D 110×485×95mm (4) Connection method: SIEMENS mode (5) Including cable and related accessories, cable head specifications: 75-2-1 |
| 7 | Package | 1 | Set | Wooden Case |
4. Cabinet Material
The cabinet is made of 304 Stainless Steel, single wall with insulation.
The cabinet is assembled type.

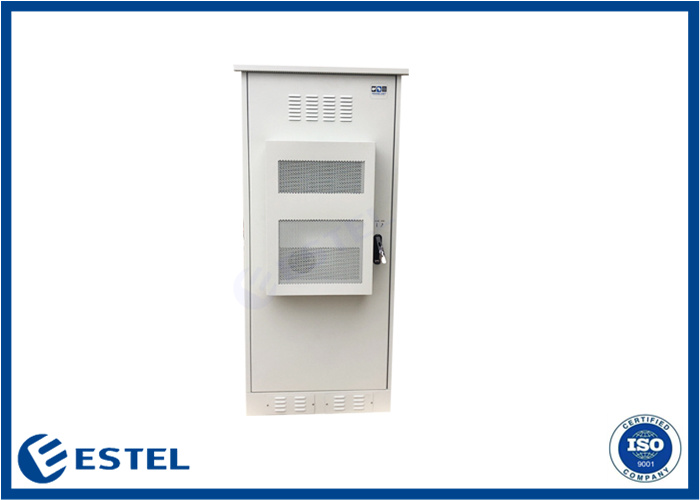

5. Cabinet Pictures
6. DDF
(1)Model:MPX108-SM16
(2) Capacity: 16 system
(3) Size: H×W×D 110×485×95mm
(4) Connection method: SIEMENS mode
(5) Including cable and related accessories, cable head specifications: 75-2-1
7. Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
