15U Galvanized Steel Single Wall Outdoor Telecom Enclosure Weatherproof Outdoor Communication Cabinet
Introduction
ESTEL is an OEM outdoor enclosure manufacturer. We provide a large variety of standard sizes from 6U to 42U high, and from 600mm to 1200mm deep, with adjustable 19”/23” racking rails, front and rear doors and 3 point locking system with pad locking handles. Designed for telecommunication industry, our enclosures can be deployed in harsh outdoor environments both rural or residential.
Application
Provides a secure, climate controlled environment for any electronic equipment. Telecommunications
Wireless/Broadband Fiber Optics Backhaul
Base Station Small Cell/DAS Utility
Military
Trailer-based Communications Wi-Fi
Flexible and Scalable
Features
● Heavy duty outdoor construction
● 15 rack units (RU), standard 19” rail
● Front access (rear access optional)
● Anti-theft three-point locking system, support padlock
● Outdoor powder coating, anti-corrosion
● Standard Color: light grey, RAL7035. Custom color available
● Cable inlet at cabinet bottom
● Include grounding bar
● Include door stopper
● Optional cooling solutions: fan ventilation, air conditioner, heat exchanger

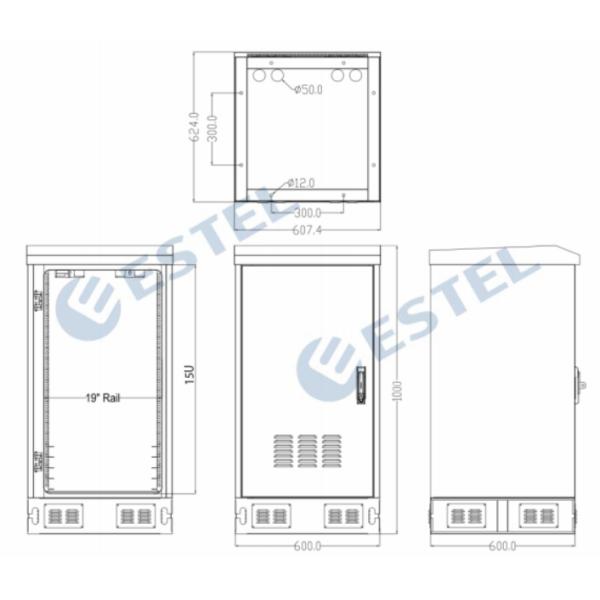

Dimension
Product Picture
Specification
| Configuration | Item | Technical Parameter |
| Cabinet Body | Model | ET6060100-EQ |
| External Dimension (include plinth) | 600mm(W)×600mm(D)×1000mm(H) |
| Internal Space | 15U |
| Cooling Mode | Fan |
| Maintenance | Front operation&maintenance |
| Material | Galvanized steel |
| single wall, without thermal insulation |
| Security Lock | 3 point locking system |
| Protection Level | IP55 |
| Installation | Floor mounted |
| Surface Treatment | Outdoor polyester powder coating |
| Color | Light grey RAL7035 coating or custom made |
| Cooling Method | Compressor Air Conditioner | Optional |
| Heat Exchanger | Optional |
| TEC Air Conditioner | Optional |
| Fan | Two AC220V fans with one temperature controller |
| Environment | Operating Temperature | -40°C～+75°C |
| Storage & Transport Temperature | -40°C～+70°C |
| Operating Humidity | 5%~100% |
| Others | Lighting | AC220V LED lamp |
| Sensors | Optional |
